What Is a Condensing Boiler?

By Boiler Guard Delaware

If you have had a new gas boiler fitted in recent years, it is almost certainly a condensing boiler. The word sounds technical, but the idea is simple: a condensing boiler recovers heat from its own exhaust that older boilers threw away, and it uses that recovered heat to warm the water returning from your radiators. That recovery is why modern boilers use less fuel for the same warmth. This guide explains how it works, what it needs, and what to watch for.

If you already own a condensing boiler, one habit protects it more than any other: noticing the condensate pipe before winter. Walk outside in autumn, find the white plastic pipe on the wall, and check that it slopes downward, wears insulation, and ends at a proper drain. That two-minute check prevents the most common cold snap failure these boilers suffer, and it costs nothing. Pair it with the annual visit, and a condensing boiler will give you its full benefit for years.

Does a condensing boiler suit every home?

Condensing boilers suit most homes with a gas supply, and they are the standard for new gas installs. They pair well with panel radiators, baseboards, and underfloor loops, and they work with stored hot water tanks as well as combi setups that heat tap water on demand. The technology is proven, and parts and knowledge are widely available.

Older homes with very small radiators may gain less, since small radiators need hotter water to heat a room, and hotter return water condenses less. That does not rule a condensing boiler out, but it may mean larger radiators are worth considering alongside the boiler, so the system can run at the lower temperatures where condensing shines.

Oil condensing boilers exist too, though they are less common than gas models, and they need careful flue and condensate handling. If your home runs on oil, ask us whether a condensing oil unit fits your system, since the answer depends on the flue route and the condensate drain available. Either way, the principle is the same: recover heat that older boilers wasted.

The exhaust-heat trick, in one short summary

A condensing boiler recovers heat from its own exhaust gases, which a conventional boiler lets escape up the flue. The recovered heat goes back into the system, so less fuel is needed for the same warmth.

Condensing units appear on the boiler installation page and the combi boiler installation page, since many modern combi units use condensing technology.

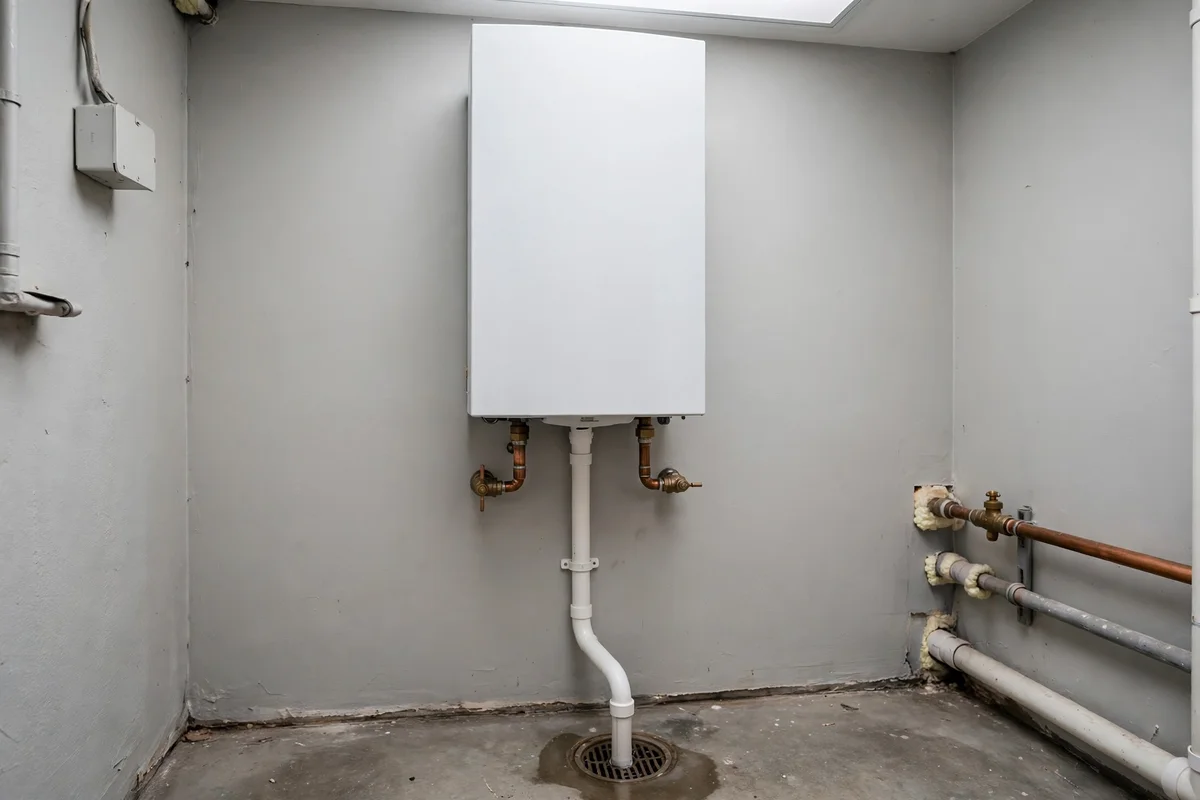

What is the condensate pipe, and why does it matter?

The condensate pipe carries the liquid formed during condensing away from the boiler, usually to a drain or soakaway outside. It is a plastic pipe, since condensate is mildly acidic and would corrode metal over time. The pipe must slope downward along its length so liquid drains without blockage.

In cold weather, the outside section of a condensate pipe can freeze, and a frozen pipe stops the boiler, since the liquid has nowhere to go. That failure is common in cold snaps and easy to spot: the boiler shows a fault, and the outside pipe is iced. Keeping the outside run short, insulated, and well sloped reduces the risk, and we can advise on the best route during a visit.

Because condensate is mildly acidic, it must drain to a proper place, not onto paths or soil near the house. A correct install routes it to a drain or a purpose-made soakaway, and that routing is part of what a good installer checks. If you see liquid pooling near a condensate pipe outlet, tell us, since the drain may be blocked or wrongly routed.

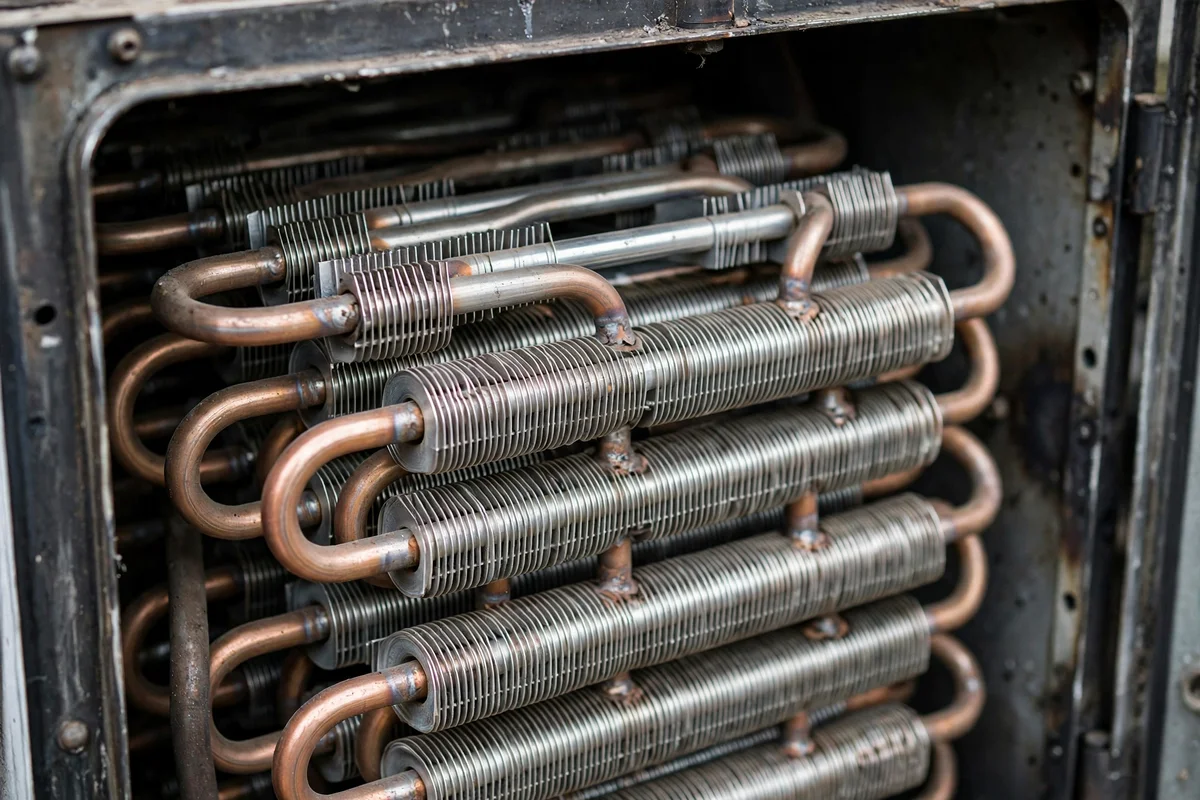

Scale and the second heat exchanger: the quiet wear to watch

The second heat exchanger is where a condensing boiler earns its advantage, and it is also where hard water leaves its mark. Scale builds slowly on heat-transfer surfaces, narrowing the path heat must take and dulling the recovery that makes condensing worthwhile. The change is gradual — rooms still heat, but the boiler works a little harder each season — so it rarely announces itself the way a leak or lockout does.

Water quality is the lever here. During a visit we look at the state of the system water and the condensate side together, and where scale or sludge is building, system flushing and water treatment can restore circulation and protect the exchanger. If a new unit is on the horizon, the same conversation belongs in a boiler installation survey, since the water going into a new boiler decides how well it ages.

What upkeep does a condensing boiler need?

A condensing boiler needs the same annual visit as any boiler: burner, heat exchanger, flue, and safety controls checked and cleaned. The condensing heat exchanger needs attention too, since condensate can leave deposits, and the condensate trap and pipe need checking for blockages. A visit that skips the condensate side misses part of the system.

Owners can help by keeping the condensate pipe clear and noting any fault codes in cold weather. If the boiler stops during a cold snap, check the outside condensate pipe for ice before calling, since that detail helps us judge the cause. Do not pour boiling water on a frozen pipe repeatedly, and do not disconnect the pipe, since the boiler needs a proper drain route.

If you are considering a new boiler, or your current unit is a condensing model and you want to understand it better, call us and ask. We will explain what your system has, how it is doing, and what it needs, in plain terms. Homes and businesses across Delaware can reach us on the number at the top of this page. See also our boiler installation guide for details on what that involves.

The outside wall check most owners never make

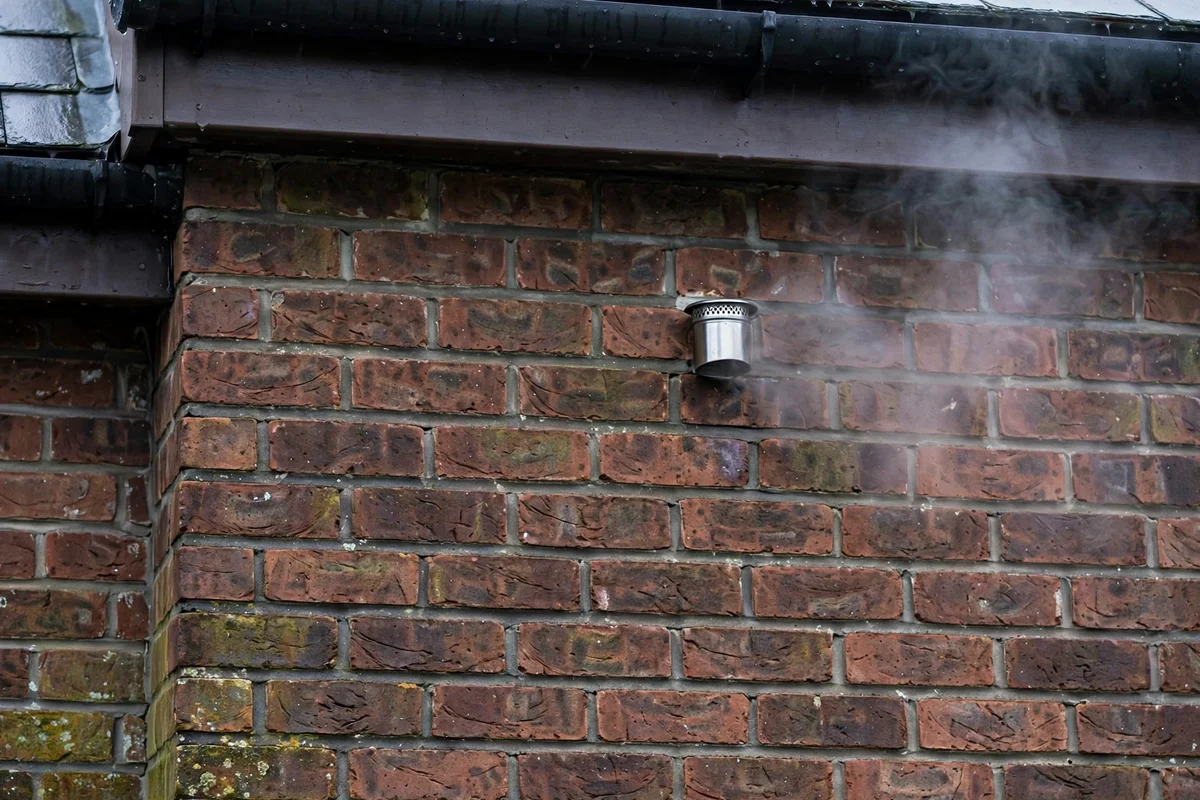

Two of a condensing boiler's most important parts sit outside the house, and owners rarely look at them. The flue terminal should stay clear of plants, stored items, snow drifts, and nests, since a blocked terminal can spill exhaust or stop the boiler. The condensate outlet should drain cleanly to its proper place, without pooling near paths or walls. A two-minute walk around the outside wall each autumn covers both.

While you are out there, note the vapor plume on a cold day. A faint, steady plume from a condensing flue is normal — it is the visible sign of exhaust cool enough to have given up its heat. What deserves a call is a plume that suddenly changes character, a terminal that drips where it never did, or any staining on the wall beneath it.

How does a condensing boiler work?

A boiler burns fuel to heat water, and the exhaust from that burning leaves through the flue as hot gas. In a condensing boiler, the exhaust passes over a second heat exchanger, where it meets the cooler water returning from radiators, and the exhaust cools enough that its water vapor condenses into liquid.

That condensing step releases extra heat, which warms the returning water before the main burner heats it further. The boiler therefore needs less fuel to reach the same temperature, since part of the work is already done by recovered heat. The condensed liquid, called condensate, drains away through a plastic pipe, which is the one visible difference owners notice on a modern boiler.

For the process to work well, the returning water must be cool enough. That is why condensing boilers pair best with radiators sized to run at lower temperatures, and with controls that avoid overheating the return. A system that runs very hot all the time condenses less, and gains less, so radiator sizing and thermostat settings matter. The U.S. ENERGY STAR program lists boilers that meet its efficiency criteria, which can help when you compare models.
